FEATURES
| Klassic Series - Self Bunded Fuel Tanks | ||||||||
|---|---|---|---|---|---|---|---|---|
| TANK MODEL | GFL CAPACITY (USG) | SFL CAPACITY (USG) | LENGTH (in) | WIDTH (in) | HEIGHT (in) | WEIGHT (lbs) | PDF BROCHURES | |

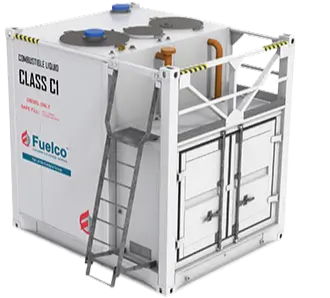

 | LTKL 12 | 3,091 (USG) | 2,937 (USG) | 10 (ft) | 8 (ft) | 9.5 (ft) | 11,246 (lbs) |  |

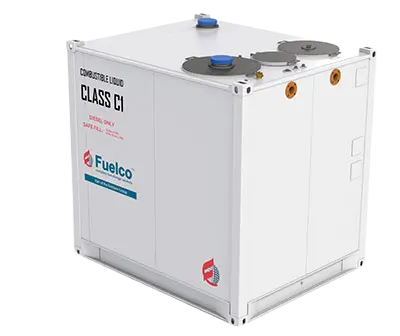

 | LTKL 20** | 4,742 (USG) | 4,491 (USG) | 10 (ft) | 8 (ft) | 9.5 (ft) | 11,025 (lbs) | |
 | LTKL 30 | 8,050 (USG) | 7,596 (USG) | 20 (ft) | 8 (ft) | 9.5 (ft) | 18,302 (lbs) | |

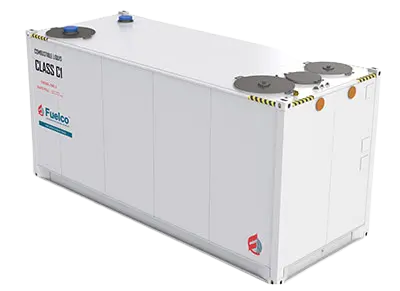

 | LTKL 38** | 9,710 (USG) | 9,036 (USG) | 20 (ft) | 8 (ft) | 9.5 (ft) | 18,522 (lbs) | |

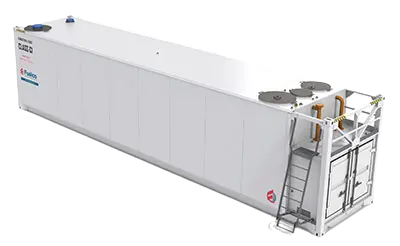

 | LTKL 68 | 17,975 (USG) | 17,067 (USG) | 40 (ft) | 8 (ft) | 9.5 (ft) | 32,193 (lbs) | |

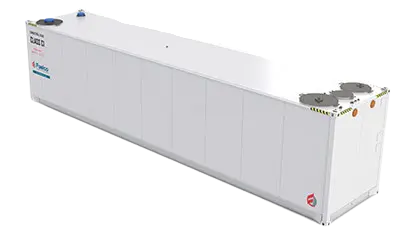

 | LTKL 75** | 19,633 (USG) | 18,639 (USG) | 40 (ft) | 8 (ft) | 9.5 (ft) | 31,973 (lbs) | |

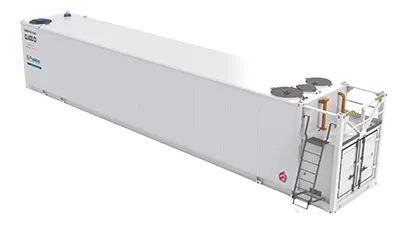

 | LTKL 80 | 21,604 (USG) | 20,456 (USG) | 48 (ft) | 8 (ft) | 9.5 (ft) | 38,588 (lbs) | |
| LTKL 90 | 24,518 (USG) | 23,292 (USG) | 48 (ft) | 8 (ft) | 10.5 (ft) | 38,588 (lbs) | |

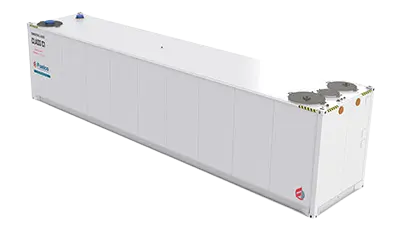

 | LTKL 100** | 26,367 (USG) | 24,967 (USG) | 48 (ft) | 8 (ft) | 10.5 (ft) | 41,013 (lbs) | |

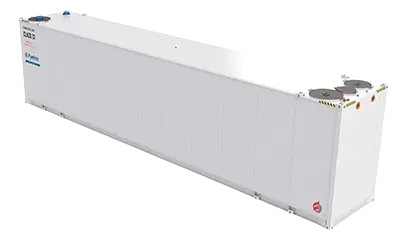

 | LTKL 110** | 30,359 (USG) | 28,798 (USG) | 48 (ft) | 8 (ft) | 11.80 (ft) | 45,203 (lbs) | |
** Clip on pump bay option avalible
